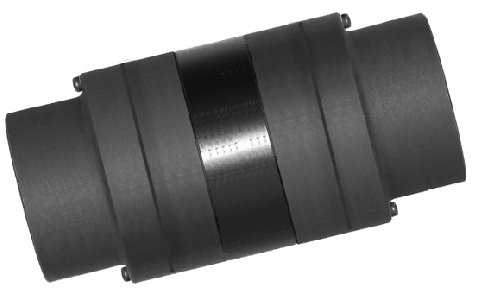

The Position : Home > Products > Power Transmission Components > Couplings > Elastomeric Couplings > JAW TYPE ‘CWS’ COUPLING
Parameter
Part No.
CWS2955
BoreMin(mm)
50
BoreMax(mm)
100

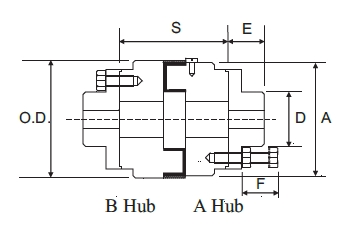

A(mm)
239
B(mm)
180
C(mm)
80
D(mm)
80
Collar O.D.(mm)
246
S*
100/140/180
Power at 100 RPM(kW)
23.04
Nominal Torque Rubber Black80 Sh A(Nm)
2200
Nominal Torque Polyurethane Yellow80 Sh A(Nm)
2750
Nominal Torque Polyurethane Yellow90 Sh A(Nm)
3300
NormalMaximumSpeed(rpm)
2300
