UP006

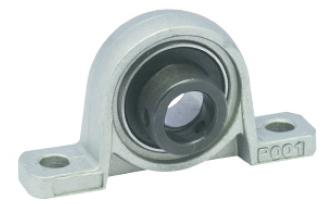

The UP000 bearing unit combines a ball bearing with a cast iron housing, offering radial load support. Its split housing design allows easy installation, making it suitable for conveyor systems and light machinery.
Metral:
Robust construction for reliable radial load handling.
Easy installation via split housing design.
Suitable for applications requiring simple maintenance.

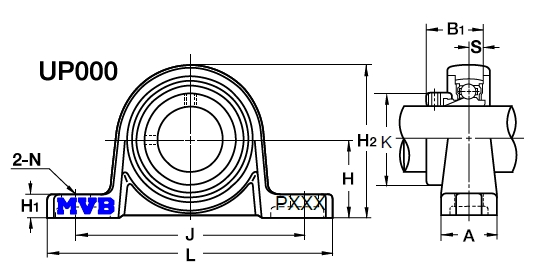

Parameter
MVBBearingUnitNo.
UP006
d(mm)
30
h(mm)
36
a(mm)
132
e(mm)
106
b(mm)
26
s(mm)
13
g(mm)
11
w(mm)
70
Bi(mm)
26.5
n(mm)
6.5
d1(mm)
42
k(mm)
57.2
m(mm)
44
Bolt(mm)
M10
Bearing No.
U006
Housing No.
P006
Weight(kg)
0.5
